Avansa G1 Anti Bandit Door With View Panel: Handgun Protection

⚙️ Technical Specs

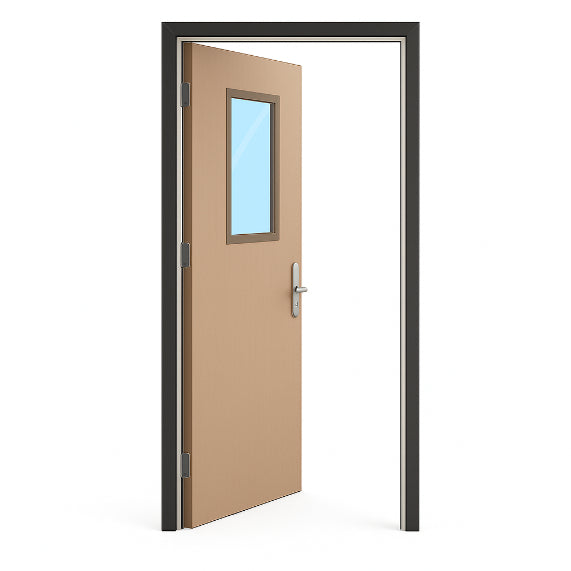

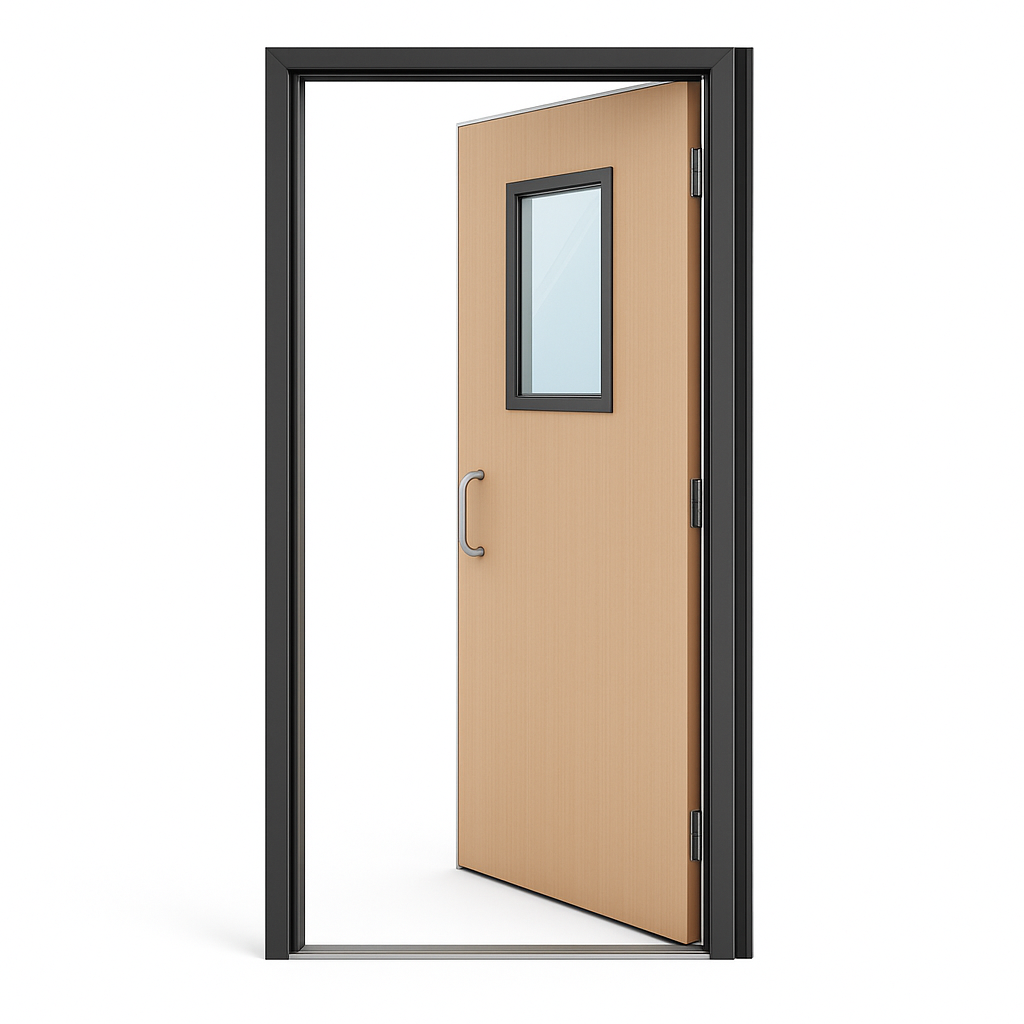

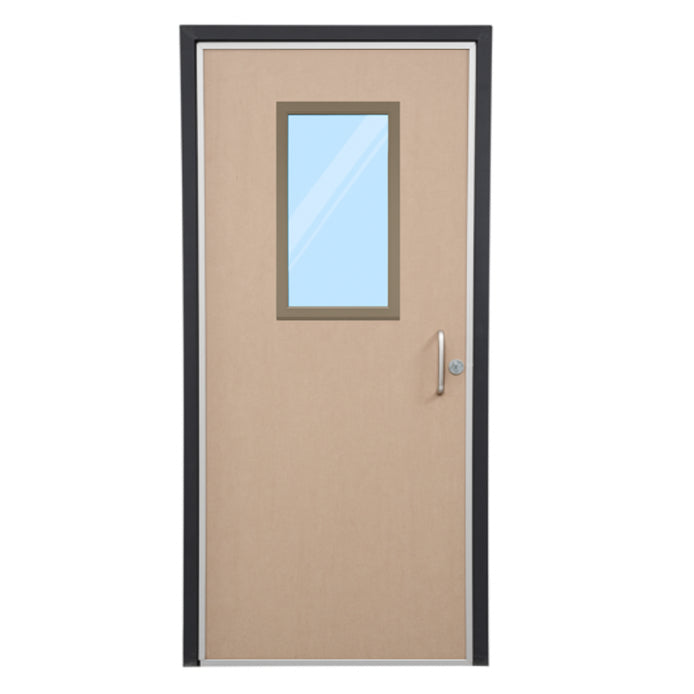

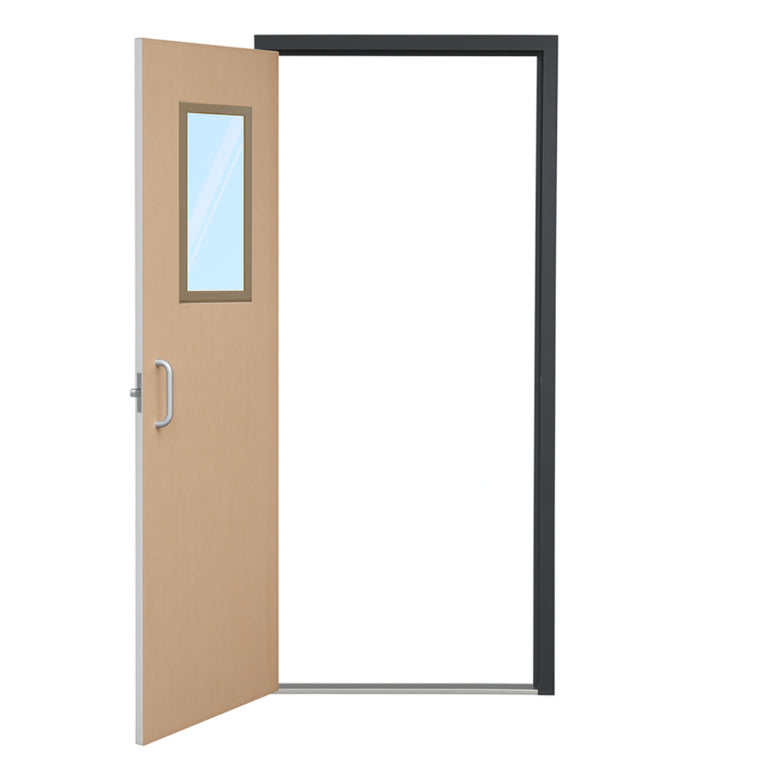

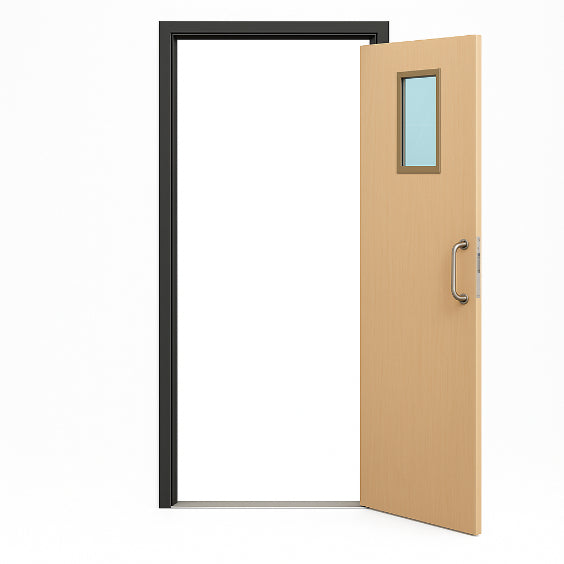

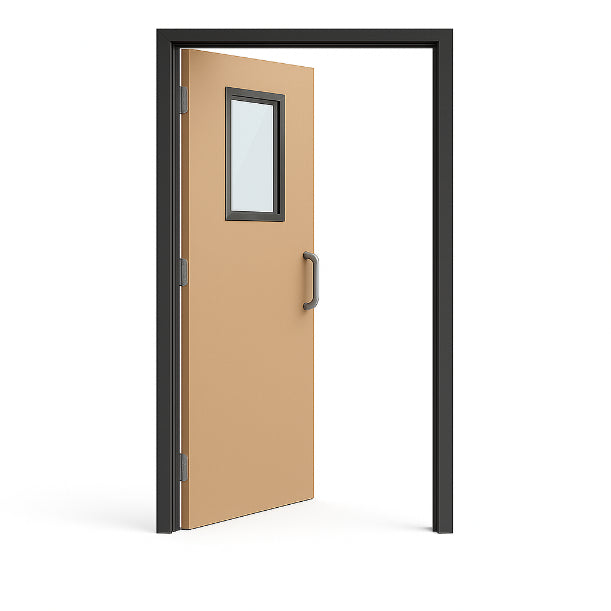

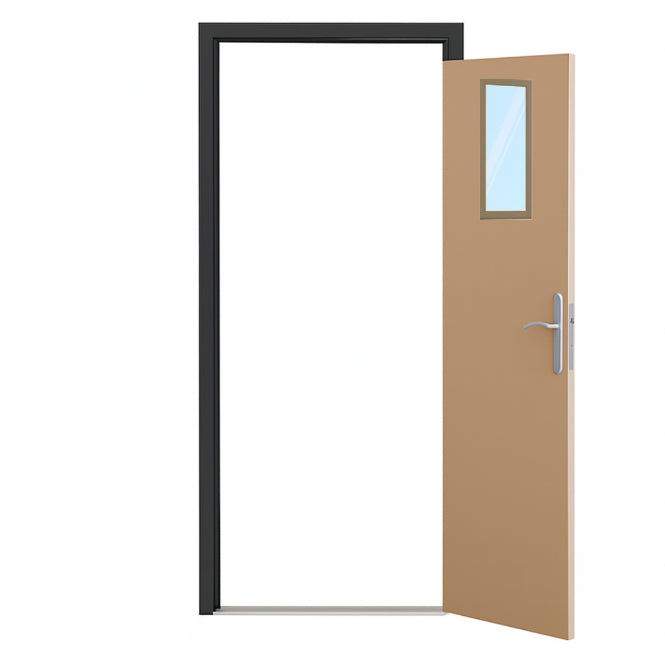

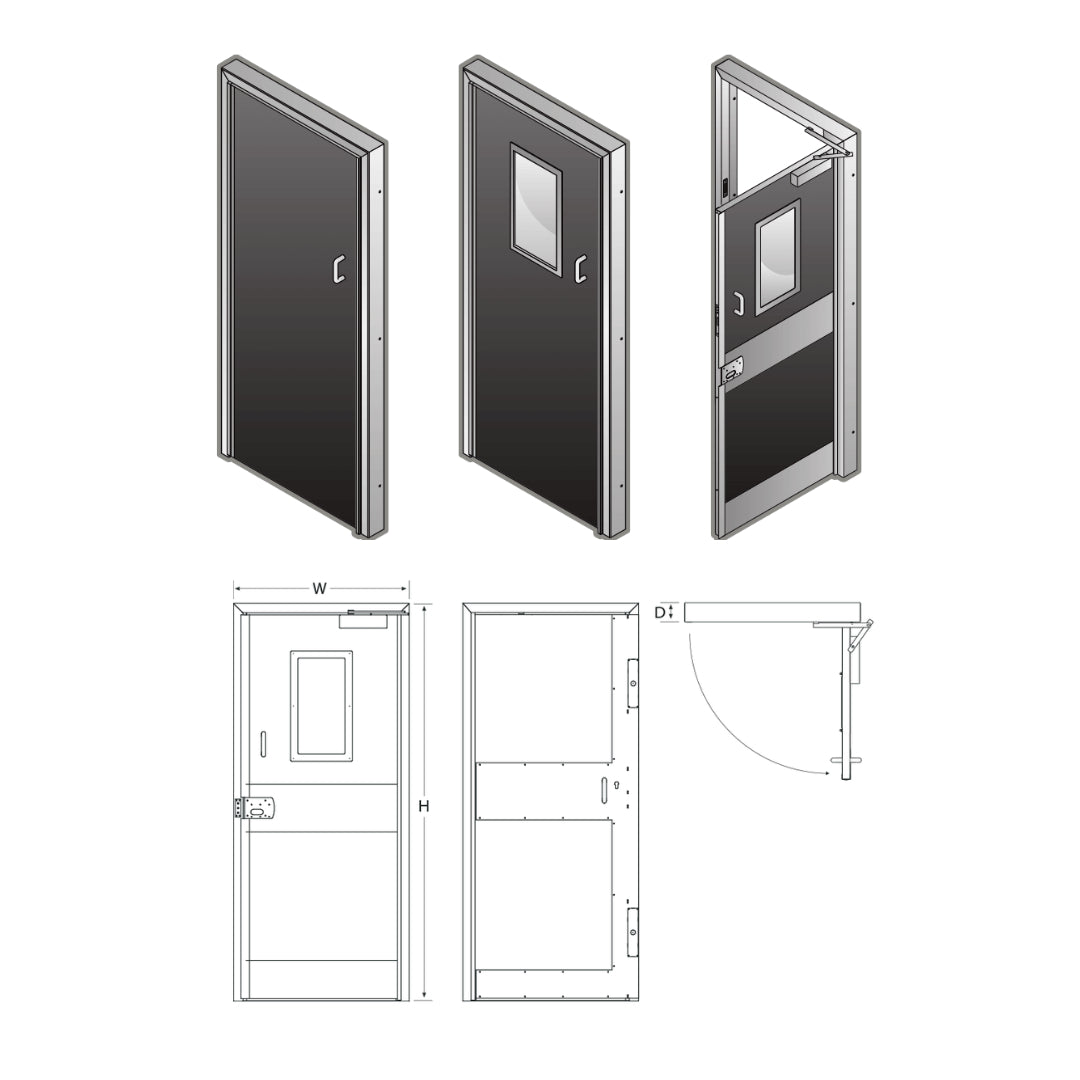

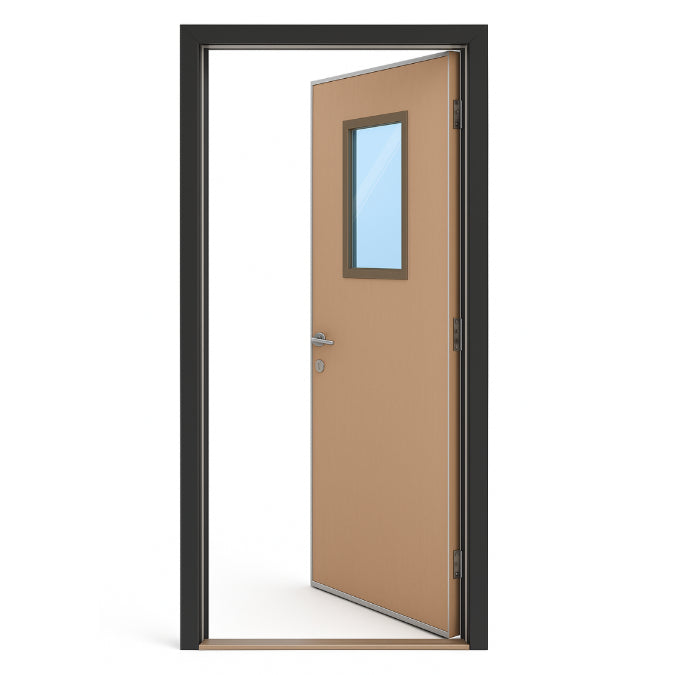

The Avansa G1 Anti Bandit Door With View Panel is engineered for robust security and durability, offering peace of mind for high-risk environments. It features a solid steel construction with a 3mm mild steel plate for the main door, designed to withstand significant force and ballistic threats. The door is certified to G1 ballistic protection levels, specifically protecting against 9mm firearm resistance. It incorporates a clear, bullet-resistant 270mm x 520mm view panel with a 38mm BRG (Bullet Resistant Glass) construction for safe visual assessment. The total weight of the door is approximately 160kg, indicating its substantial build. The frame is designed for seamless integration into existing or new building structures, ensuring a secure fit. High-quality hinges are used to support the substantial weight of the door, providing smooth operation and preventing sag over time. Locking mechanisms include multi-point locking for enhanced security. Customisation options are available for various opening directions (inward or outward door opening) and handle orientations (left or right hand handle). Optional chargeable extras include a Door Closer, Electronic Locking via Maglock, Digipad and Push Button, decorative cladding, and protective kick plates or push plates.

Optional Extras:

• Door closer
• Electronic locking (Maglock, Digipad, Push Button),
• Cladding,
• Kick plate/push plate.

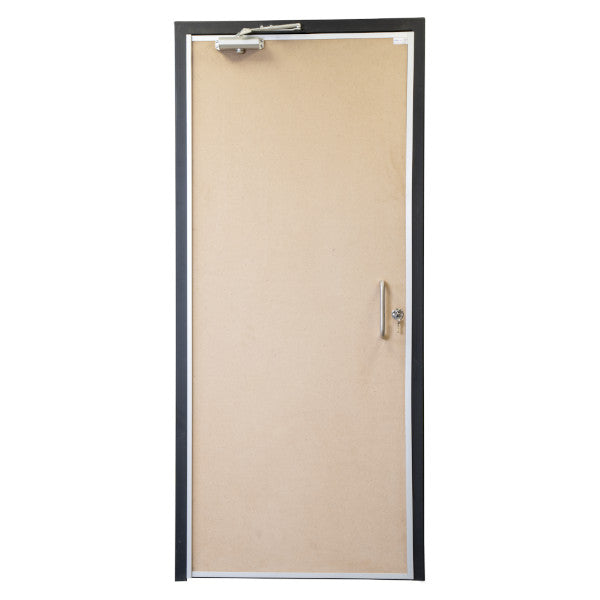

Heavy Duty Door Closer

• Weight (kg): 1.7
• Finish: Silver
• Handing: Reversible
• Closer Type: Overhead
• Closer Features: Adjustable Speed
• Closer Standards: CE Marked, Fire Tested
• Closer Strength: 3 to 4

Access Control Power supply with adjustable timer

• Box Size: 226L x 226W x 84H (mm)
• Input Voltage: 220VAC ~ 240VAC; 50/60HZ
• Output Voltage: DC12V / 3A
• Time Relay: 0 ~ 30 sec
• Optional Accessories: Backup Battery, 12V / 7H
• Output Contact: Access control, Electric Lock, Release Button
• Standard Design: Steel Material, Painted
• Protect Safely: Short Circuit protection
• Suitable For: Access control, Electric lock
• Weight: 2.4kg

Door Release Button with Back Box

• Dimensions: 83L x 32W x 25H (mm)
• Standard Structure: Alloy Plate, Sandblast Finished
• Current Rating: 3A @ 36VDC Max
• Output Contact: NO / COM
• Mechanical Life: 100000 tested
• Operating Temp: -20℃ ~ +50℃
• Weight: 0.086 Kg

Outdoor Keypad with RFID

• Operating Voltage: 9~18V DC
• Frequency: 125KHz
• Card Type: EM Card
• Reading Distance: 4~8 CM
• Index of Protection: IP66
• Dimensions: 12.2L × 5.0W × 2.1H (cm)
• User Capacity: 1000 Cards/PINs
• Normal Users: 990
• Visitor Users: 10

Magnetic (MAG) Lock

• Size: 265L × 74.8W × 38.8H (mm)
• Armature Plate: 185L × 60W × 13H (mm)
• Holding Force: 500kg (1200Lbs)
• Voltage: 12 or 24VDC
• Current Draw: 12V / 420mA or 24V / 210mA
• Signal Output: Dry Contact, Max Rating of Contact Current 3A
• LED Indicator:
  • Red = Door Unlocked
  • Green = Door Locked
• Suitable For: Wooden door, Glass door, Metal door, Fireproof door
• Surface Temperature: ≤ ±20°C
• Operating Temperature: -10°C ~ +55°C (14°F ~ 131°F)
• Suitable Humidity: 0~95% (non-condensing)
• Finishes (Shell): Anodized Aluminum
• Finishes (Magnetic): Zinc
• Finishes (Armature): Zinc
• Weight: 4.5kg

🗣️ Customer Testimonial

"We were looking for a reliable anti-bandit door for our cash office in Johannesburg, and Avansa came highly recommended. Their team provided a fast quote, and the guidance we received on the G1 rating versus our specific threat concerns was incredibly helpful. The installation was straightforward, and the door feels incredibly solid – our staff feel much safer now. It's a genuine deterrent, and we appreciate the peace of mind it brings." - Retail Manager, Gauteng

🎯 Ideal Applications

The Avansa G1 Anti Bandit Door With View Panel is an indispensable security solution for a variety of business environments across Southern Africa, from bustling retail stores in Cape Town to remote banking branches in Zambia. It is ideal for cash offices, secure rooms, server rooms, pharmacies, police stations, data centres, and any area requiring a robust barrier against armed intrusion. Its G1 rating makes it perfect for locations where protection against handgun attacks is paramount, offering a vital security layer for personnel and valuable assets. This door is particularly effective for businesses experiencing frequent security threats or those needing to upgrade their existing entry points to meet stricter insurance requirements or enhanced security protocols.

💡 How It Works

The Avansa G1 Anti Bandit Door is designed as a primary or secondary security barrier. Upon installation into a reinforced door frame, its robust steel construction and multi-point locking system create a formidable deterrent. The integrated view panel, made of bullet-resistant glass, allows personnel inside to visually identify individuals before opening the door, adding a layer of controlled access and safety. In the event of an attack, the door's G1 ballistic rating ensures it can withstand handgun fire, providing critical time for emergency services to respond and protecting occupants. With a typical lead time of 7-10 days, your enhanced security can be operational swiftly.

💰 Value Benefits

• Enhanced Asset Protection: Significantly reduces the risk of loss from armed robbery and forced entry, safeguarding cash, valuable documents, and critical equipment.
• Increased Staff Safety: Provides a secure refuge for employees during security incidents, reducing anxiety and creating a safer working environment.
• Reduced Insurance Premiums: Meeting higher security standards with a G1 rated door can potentially lead to lower insurance costs, improving your business's ROI.
• Operational Continuity: By deterring attacks and protecting your core assets, the door helps prevent costly disruptions to business operations.
• Long-Term Durability: Built with high-quality materials and craftsmanship, ensuring a long lifespan and minimal maintenance, representing a sound investment for your business.

📊 Product Comparison

When considering the Avansa G1 Anti Bandit Door With View Panel against other security solutions, it's essential to understand its specific advantages, particularly when compared to models like the Mutual Anti Bandit Door Level G1 or other Avansa doors.

🧾 Feature Comparison:

Ballistic Protection Level:

• Avansa G1 Anti Bandit Door: G1 rated, offering protection against handgun calibres up to 9mm.
• Mutual Anti Bandit Door Level G1: Typically offers similar G1 ballistic protection.
• Avansa G2 Anti Bandit Door: Provides higher protection against handguns and shotgun rounds.
• Avansa G3 Anti Bandit Door: Offers the highest level of protection against rifle rounds, including AK-47.

View Panel Integration:

• Avansa G1 Anti Bandit Door: Includes an integrated bullet-resistant view panel (38mm BRG) as standard, enhancing visual security.
• Mutual Anti Bandit Door Level G1: View panel may be an optional extra or vary by specific model.
• Avansa G2/G3 Anti Bandit Door: View panel options available, typically with higher ballistic resistance to match the door's rating.

Construction & Durability:

• Avansa G1 Anti Bandit Door: Reinforced steel construction with 3mm mild steel plate, designed for high forced-entry resistance and long-term durability, backed by Avansa's local manufacturing expertise.
• Mutual Anti Bandit Door Level G1: Likely similar robust construction, but specific material grades and manufacturing processes may vary.

Customisation & Installation:

• Avansa G1 Anti Bandit Door: Offers flexible customisation for opening direction (inward/outward) and handle orientation (left/right), and integration with various locking systems. Our team provides support for seamless installation.
• Mutual Anti Bandit Door Level G1: Customisation options may vary depending on the supplier and manufacturing capabilities.

🧭 Explore Our Product Range

Beyond the G1 Anti Bandit Door, Avansa Business Technologies offers a comprehensive suite of security and cash handling solutions tailored for Southern African businesses:

• Avansa Strongroom Doors: CAT1 & CAT2, available in light or heavy duty, for ultimate vault security.
• Avansa Drop Safes: CAT2, CAT3, CAT4 & CAT5, ideal for secure cash deposits.
• Avansa Under-Counter Safes: Removable locking safes, designed for quick and secure note storage.
• Avansa Office Safes: CAT1, CAT2, CAT3 & CAT4, offering various sizes for general office security.
• Avansa ATM Anti Bandit Security Doors: Specialised doors designed to protect ATMs from attack.
• Avansa Cash Transfer Drawers: For secure transfer of cash in transactional environments.
• Avansa Goods Transfer Drawers: For secure transfer of goods without compromising security.
• Avansa Pay Windows: Available with bulletproof glass for secure customer interactions.

❓ Common Questions

What ballistic threats does the G1 anti bandit door protect against?

The Avansa G1 Anti Bandit Door is certified to provide protection against handgun threats up to 9mm calibre, making it suitable for environments where such weapons are a primary concern.

How is installation handled, including frame and hinges?

Installation typically involves securing the robust door frame into a reinforced wall opening. Our team can provide guidance on specific installation requirements, including hinge specifications and inward versus outward opening preferences, and the total weight of the door is 160kg.

What optional extras are available for the Avansa G1 door?

You can customise your G1 door with various optional extras, including a door closer, electronic locking via maglock, digipad and push button, decorative cladding, and protective kick plates or push plates.

Is the G1 anti bandit door suitable for exterior use?

While primarily designed for internal security applications, the Avansa G1 door can be adapted for exterior use with appropriate weatherproofing and protective finishes. Please consult with our sales team for specific outdoor requirements, and note its standard Masonite finish.

What is the lead time and delivery cost estimate for the G1 anti bandit door?

The typical lead time for the Avansa G1 Anti Bandit Door is 7-10 days. Delivery costs depend on your location within Southern Africa; a precise estimate will be provided with your quote.

Does the view panel offer the same ballistic protection as the door?

Yes, the integrated view panel in the Avansa G1 Anti Bandit Door is made of 38mm Bullet Resistant Glass that matches the G1 ballistic protection level of the door itself, ensuring consistent security.
